妙用与简单/Purpose and introduction

该生产加工线由理瓶机(上瓶台)、超声清洗波洗瓶机，罐装(旋盖)加塞机，轧盖机，贴标签机等主设备组合On the production line by unscramble bottle machine (bottle), ultrasonic bottle washing machine, filling (screw cap) stoppering machine, rolling machine, labeling machine and other equipment

作用/characteristic：

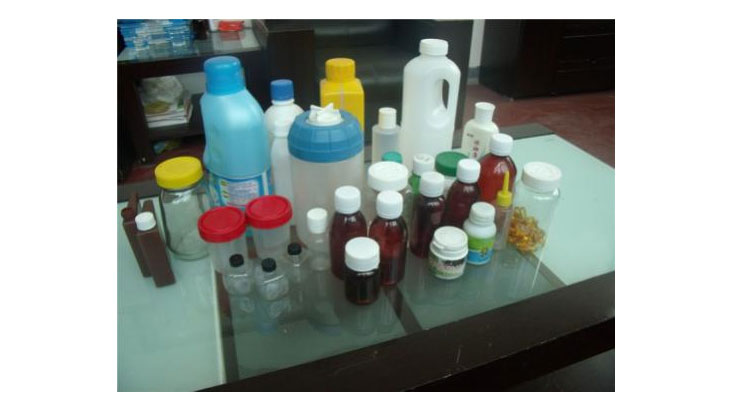

该产生方式线时候于 30-500ml型号服务的灌装线加塞封口处，换部分規格压铸模具后，既时候于朔胶瓶，也时候于窗玻璃罐。体现了认知范围内很广，调控非常方便的作用。整线产生方式本事；适塑料瓶子多少形状图片，生物体粘合度而定。The product line is suitable for 30-500 ml series products filling barging sealing, change some specifications after the mould, is suitable for plastic bottle, also suitable for glass bottle. Have to adapt to a wide range, convenient adjustment. The whole line production capacity; Optimum size bottle shapes, object on the viscosity.

系统性能指标/technical parameters：

生产能力production capacity(pcs/h)	80-120(8针灌装、6头轧盖    40-60(4针灌装、单头轧盖)
洗瓶清洁度Washing bottle cleanliness(%)	> 99
装量误差度The load error(%)	0-2
上塞合格证率Plug on the percent of pass(%)	> 98
轧盖及格率Rolling cover percent of pass(%)	> 98
功率power(kw)	11
外形尺寸boundary dimension(LxWxH)   (mm)	9.740 × 1,470 × 1,785
