的用途与简单：/Purpose and introduction

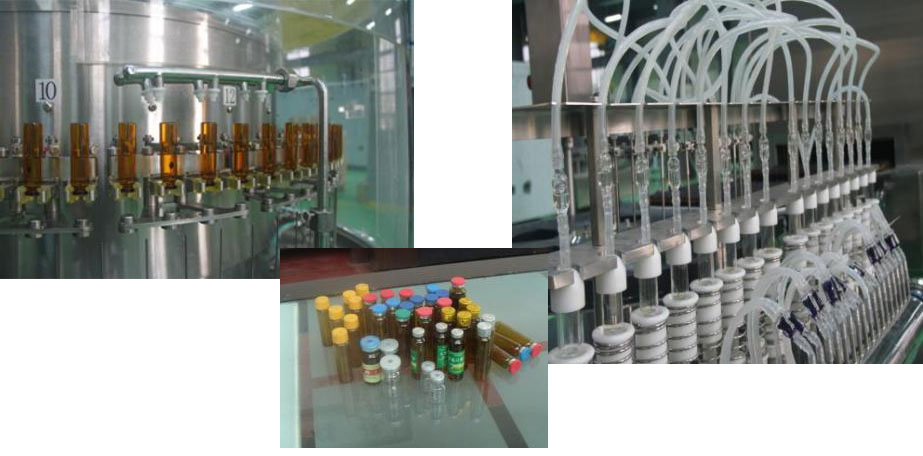

服用液洗烘灌轧协作线由旋转式多普勒彩超波洗瓶机、隧道施工式自动空调 重复无菌烘干阶段箱、服用液罐装轧盖机等构成，符合于 5-30ml 等各种规 格服用液瓶的生产销售销售。可完毕对医药生产销售销售中安瓿瓶淋水、多普勒彩超波擦拭、冲水、充 气、烘干阶段无菌、水冷却、罐装、轧盖等生产工艺流程的协作加载。Oral liquid washing drying filling and rolling line by the vertical ultrasonic bottle-washing machine, tunnel sterilization oven hot wind cycle, oral liquid filling and other components of the rolling machine, suitable for 5-30 ml different gauge, etc Oral liquid bottle production. Can be done for ampoule bottle pour water in drug production, ultrasonic cleaning, flushing, filling gas, drying sterilization, cooling, filling and rolling cover joint operation of the process steps.

优缺点:/characteristic

◆洗瓶机分为机械装备手夹瓶，应用多样技术参数的塑料瓶子；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of the bottle;◆洗瓶选用水汽喷针反复跟踪定位复制方式，进行维护清洁感觉好，节约用电新能源。并下设针架防运动部件，改善喷针复制可乐瓶的准确性度，避免断针表现情况；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶整个的水蒸汽导压管、喷针充分自立拆开，以免了交差空气污染，遵循GMP规范了请求；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶丝杠前安装缓解块，有保障丝杠，变少碎瓶的作用Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottles◆洗瓶机出瓶选取整体风格進口同样带，联接拨块运输内服液，启动不稳可信度In pieces out of the bottle inside the whole import synchronous belt, the connection piece of conveying liquid, stable and reliable running◆烘烤箱选用红外线调温管，不绣钢调温管双层线路调温平均温度不光滑性好；Oven using infrared heating tube, stainless steel heating tube double heating temperature uniformity is good;◆罐装轧盖机自选配陶瓷厂家泵、不锈钢装饰管吗泵；In pieces filling rolling machine optional ceramic pump, stainless steel pump;◆罐装无瓶止灌，无瓶不轧盖工作。Pieces filling without bottle filling, no bottle no rolling function.◆整线按照PLC总调整、伺服驱动器器、手触屏调整技艺，运转稳固不靠谱。手触屏可提示 各单机联机的运转情况，各调整点的水位、空气压力、气压、热度等提示 ，各旋转开关情况和问题提示 ，问题个人就诊和问题探讨及在排除技巧。使一整个产出具体步骤起到全自动调整，联线有三机自动化平衡点控制系统，保持产出稳定不靠谱。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. The whole production process to achieve automatic control, on-line has the compressors control balancing device, ensure production is balanced.跟据买家的须得，还可供配搭：According to the needs of customers, but also available for selection:◆欧姆龙、施耐德开关、三菱PLC、台达等品牌形象调控系統；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气阻力、温度及超音波波效果、玦尘物体、风速等级优酷云查重、报警器、记录时间、直接打印体系。Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system.◆ORABS、CRABS、无茵底部隔离器系统。Mixer ORABS, CRABS, aseptic isolator system.

技术设备参数值：technical parameters

符合品种Cutting   dimension(ml)	5-25
生产能力production capacity(pcs/min)	350
装灌精准度Filling accuracy(%)	≤ ± 2.5
包装头数Fillingheads	16
轧盖头数Number of rolling   curtain	单刀20头
轧盖合格品率Rolling cover   percent of pass(%)	≥ 99
总重量total weight(kg)	7500
外形尺寸boundary dimension(mm)	9920 × 2003 × 2150
