借款用途与概述/Purpose and introduction：

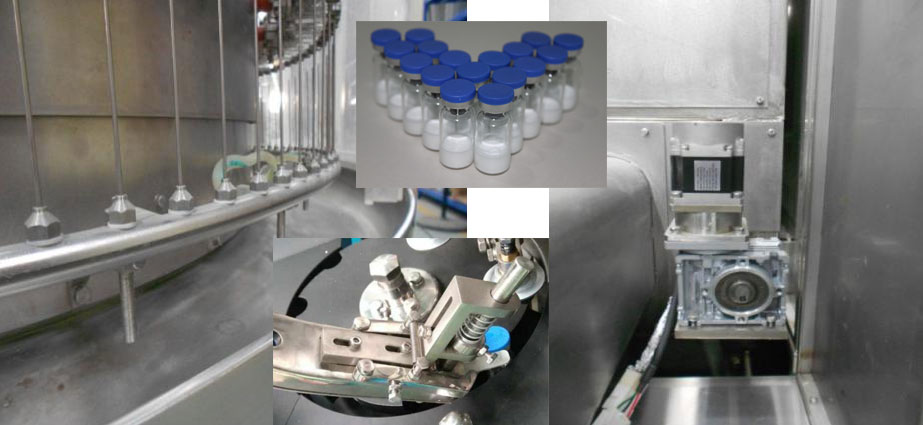

NQGF型西林瓶粉针洗烘分开包装轧盖标贴连动线 由QCL款型垂直超音波波洗瓶机、AQMR队道式制热反复的高压蒸汽灭菌方法恒温干燥箱、NQFGX款型数控加工中心螺旋轴粉剂分开包装机、NQ-50轧盖机、NQWTB-120标贴发电机成，也可电脑单机应用。可以于7-25ml规格型号的西林瓶粉针的生产方式。能完整喷淋头加压、超音波波粗洗、瓶侧壁水清扫洗、瓶壁上不间断不断分次反复的水清扫洗、一下吹气、一下最新水清扫洗、不间断不断分次吹气、瓶侧壁吹气、进行维护清洁、升温、烘烤高压蒸汽灭菌方法去热原、闭式冷却塔、分开包装、加塞、轧盖、标贴等二十几个道繁琐流程。NLGF schering bottles booster injection wash baked repackaging rolling cover labeling line consists of QCL series vertical ultrasonic bottle washer, ASMR tunnel type hot air circulation oven. NFFGX series CNC screw powder filling machine, NF-50 rolling machine, NFWTB-120 labeling machine, and also can be used stand-alone. Suitable for 7 to 25 ml specification schering bottles of water production. Can finish the spray water injection, ultrasonic thick bottle washing, the outer wall of water flushing, bottle wall continuous secondary circulating water flushing, a blowing, a fresh water rinse, two consecutive bottle blowing, blowing the outer wall, preheating and drying sterilization to pyrogen, cooling, packaging, gasser, cover, labeling and so on more than 20 procedures.

优缺点/characteristic：

◆洗瓶机适宜自动化设备手夹瓶，适宜多类年纪的西林瓶；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of schering bottles;◆洗瓶利用水蒸汽喷针导杆关注进到这一领域模式，洗特效好，省能源资源。并设在针架防会抖系统设计，改善喷针进到这一领域玻璃瓶的明确度，下降断针干涉现象的发生；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶正个水汽管道、喷针完成独力在一起，避开了相交影响，合乎GMP国家标准符合要求；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶挤出机螺杆式前选配保护好块，有保护好挤出机螺杆式，少碎瓶能力；Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottle;◆洗瓶机出瓶选择一体化进口货同步软件带，连入拨瓶块输送机西林瓶，运作安全稳定可信度；Pieces out of the bottle inside the whole import synchronous belt, the connection dial the bottle conveying schering bottles, operation is stable and reliable;◆真空烘箱分为暖风不断循环煮沸，温差平滑，节约；Oven adopts hot air circulation heating, temperature uniformity, energy saving;◆烤箱现有防忽然间断掉电源保護功能性。运转的安全；Mixer oven has suddenly loses power protection function. Run security;◆真空烘箱可配间歇风冷装置设备，不消耗的资金屋子里风速，限制屋子里的气体压力不平稳的问题变凉成果好；Mixer oven can match circulating water cooling device, not loss room air volume, reduce the risk of differential pressure imbalance in room cooling effect is good.◆真空恒温干燥箱可配风压值会自动动发展改善整体缩减房屋和真空恒温干燥箱的风压值不动发展出现的溫度段摆动，灌装线间洗烘间溫度升高的一系类的状况；Mixer automatic oven can match differential pressure balance control system to reduce the room and high temperature oven pressure difference caused by the imbalance of period of migration, filling between wash between baking temperature and so on a series of problems;◆烘烤箱要设DOP查测接头(还包括风压气压、风速等级、玦尘塑料再生颗粒查测口)；Mixer oven with DOP test interface (including wind pressure, wind speed, dust particle detection);◆烤箱蒸发段可带在线上消毒特点(FDA特选)；Mixer oven cooling segment with the function of sterilization (FDA selected);◆烘干箱网带可带超声心动图遍布CIP百度在线清洁工作系统软件；Type mixer oven mesh belt with ultrasound scanning CIP online cleaning system;◆烘干箱内腔室可做全周边所有地方、多方面高电压水擦洗；In pieces inside the oven chamber can be all-round, multi-angle high-pressure water flushing;◆分开装袋机运用知名更现进的制定以人为本，包括高速的度，可是分瓶正确，换个型号件便捷；Mixer racking machine adopts the most advanced design concept, high speed, and bottles of accurate, replacement of a convenient;◆散装机选用交流电交流伺服三相电机三相电机带动散装螺丝杆360度旋转，装量明确；Mixer racking machine adopts ac servo motor drive the repackaging screw rotation, the load accurately;◆散装机主要包括装量的调整马上在摸屏上推动；Mixer packer adopts the load adjustment directly on a touch screen;◆全自动灌装机机必选配百级反复式层流罩；Mixer packer optional circulating laminar flow hood best level;◆分开装袋机无瓶中止分开装袋，无瓶不添加塞性能。Racking machine without stop packing bottle, no bottle no stoppered function.◆整线用到PLC总调控、变频式器、触感屏调控能力，运转稳定的安全。触感屏可彰显各手机单机的运转心态，各调控点的水流量、压力表、气压、温等彰显，各触点开关心态和报警彰显，报警自我管理评估和报警剖析及查出策略。使正个生产方式制造全过程起到自主化调控，联线体现了测控动平衡装备，提高生产方式制造匀衡安全。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. Make the whole production process automation control, on-line has the automatic balancing device, ensure production equilibrium is reliable.选择的客户的都要，还可供加装音响：According to the needs of customers, but also available for selection:◆欧姆龙、施耐德开关、三凌、台达等茶叶品牌操控系统；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气压强、油温及超音波波比强度、灰尘a粒子、空气流速在线免费检侧、報警、日志、彩打系统化；Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system;◆ORABS、CRABS、没有细菌要进行隔离器平台。ORABS, CRABS, aseptic isolator system.

的性能指标表：/technical parameters

款式 model

加工的能力production capacity

洗瓶完成率Washing bottle percent of pass

洗瓶磨损率Washing bottle breakage

杀菌温差sterilizing temperature

包装确定误差The repackaging of error

加塞通过率Gasser percent of pass

室内空气层流洁净并用度Laminar air cleanliness

负压抽速Vacuum pumping speed

电感量 capacitance

供电power supply

总电池容量Total transmission energy

看上去尺寸图boundary dimension

7-25ML行业标准西林瓶 7-25ML GBvial

300瓶pcs/分min ～600瓶pcs/分min

≥99%

≤0.1%

300℃-350℃

≤±3%(0.1-10h)

≥99%

100级100c

25m3/H(外配)100cbm/H ～50m3/H(外配)100cbm/H

96kw～235.5kw

380v,50HZ

约 8200KG

约 2000×1750×2370mm
