种类与简价：Purpose and introduction

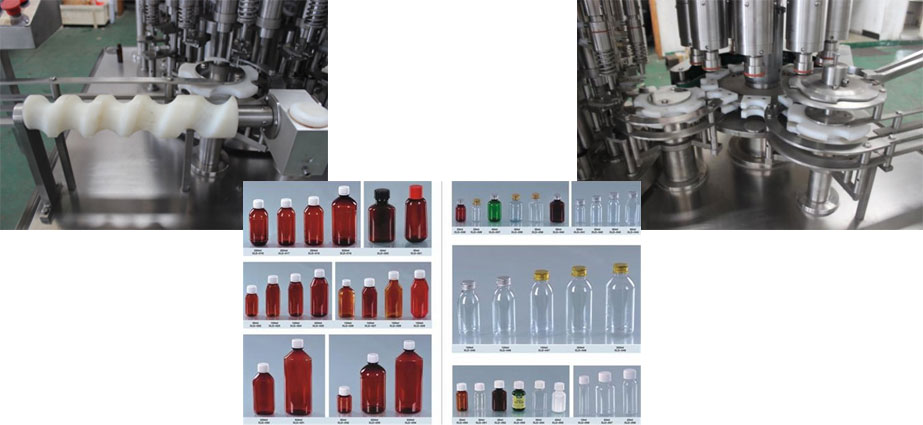

该系统可用做于对30-500ML系列的夹丝玻璃容器、塑胶瓶的罐装密封。运用过往过往式火塞确定罐装，电磁炉振荡器送盖，会轧盖(轻金属式)或旋盖(塑胶盖)密封，会和左右的种植销售工艺技术系统快速连接组成的种植销售线，显然会选用百级层流罩。This machine is suitable for the filling and sealing of 30-500ml series glass bottles and plastic bottles. The reciprocating between piston filling, electromagnetic oscillation send cover, cover (metal) can be rolled or screw cap (plastic cap) sealing. Can produce and the produce of the process equipment before and after connecting line. In addition, the laminar flow hood is available for selection.

性能：characteristic

装量准确度，杜尽滴漏问题。缺瓶不罐装。 变頻控速。 积极凸显运算保健作用。 机床均按GMP需要规划。The filling amount is accurate, as Du drip. Lack of bottle does not fill. Frequency control of motor speed. Active display count. The machine according to the GMP request design.

技术工艺参数指标/technical parameters：

型号 model	NQGX30-500
实用规格尺寸Cutting dimension	30-500ml
出厂作用Production capacity	80-200瓶/分（罐/1分钟）80-200 bottles/min (cans/min)
装罐精密度较 Filling accuracy	≤±1%
电源模块 Power	380V/50Hz
旋（轧）盖率Spin (rolling) cover rate	≥99%
功率power	3.0 kw
机械设备净含量 Machine weight	1500 kg
外形尺寸 boundary dimension	3000*1100*1700mm
