的主要用途与简单介绍/Brief Introduction：

什么是服务器运用有点三通接头装罐阀，适宜于水剂和膏霜类物品的装罐，有点对高消费黏性货物（如浓酱、尖椒酱、番茄酱、种衣剂、微乳剂、透明桌面剂等）的使用效果对比分明，且表面粗糙度就越高。什么是服务器运用PLC可java开发把控好，和6屏幕尺寸触屏屏组排使用界面软件系统，颁布一键进瓶，一键装罐，一键出瓶，机械，汽动元构件均运用国际联盟国产品牌，保持了出众的质量水平和更久不稳的特性。本主机形式简便，使用不方便，是内部很好的争对高消费黏性货物的装罐主机。什么是服务器选用了预防渗漏与拔丝的装罐闷头，保持装罐完后无渗漏，无拔丝。Filling valve, the machine USES special tee is suitable for the filling agent and cream products, especially for high viscosity material (such as thick sauce, chili sauce, tomato sauce, indicated, micro emulsion, suspending agent, etc.) of the effect is obvious, and high precision. The machine USES PLC programmable control, with 6 inch touch screen man-machine interface system, implements the automatic into the bottle, automatic filling, automatic bottle, electric, pneumatic components adopt international brand, to ensure that the performance of the outstanding quality and lasting stability. This equipment has simple structure, convenient operation, is the ideal filling equipment for high viscosity material. The machine is equipped with prevent drip with wire filling cocks, ensure filling after the completion of a drip-tight, no drawing.

特征/Characteristic：

◆保持软件——用西门子PLC保持软件，包装使用量随机性细调。Control system adopt mitsubishi PLC control system, filling dose random tweaks◆操作流程使用网页——65英寸彩屏手触式操作流程使用网页，主观简短、安全性高稳定Interface - 6 inches color hand touch interface operation, intuitive and simple, safe and reliable◆的特点问题解决——开料有防渗漏设备，可要根据原料基本特性配备下潜包装的特点。（此的特点会选取）Improvements - blanking drip tight device, according to the material properties have diving filling function. (this function can be chosen)◆电器电线电缆开关元件——均通过国外国产品牌国产品牌，保持环保设备的稳定靠普、准确度高朝；Electrical components adopt international famous brand, to ensure the equipment safe and reliable, high accuracy;◆机械设备部位——机器人部位均选择创新型304不锈铝合金作,比如所需接触的面积材料可不可以选择316L另算钱用。Mechanical parts, machine parts are made of high quality 304 stainless steel material can be used if necessary contact 316 l in extra costs.◆记数验测——实时的记数，对运行生产量准确体现。Counting test, real-time, intuitive reflect the yield of work.◆灌装设备检查测量——无瓶不灌、瓶数还不够不灌Bottle filling test - no bottle no filling, not enough◆运维前提——超声波焊接机符合国家GMP的标准，可简单拆开、擦洗运维。Maintenance - the machine is in line with the GMP requirements, easy disassembly, cleaning maintenance.◆需要更改年纪——更新灌装设备年纪时，只需要单纯变动，方便拿下。Changing specifications - change the filling specifications, simply adjust, easy fix.◆生态绿色标准配值——标准配值了生态绿色方框，使设备的实际操作区域更好清潔安全卫生。（此生态绿色标准配值能能选择装配）Environmental protection configuration, configuration framework of environmental protection, make the operation of the machine environment more clean sanitation. (the environmental protection configuration can be selected)

系统性能参数/technical parameters：

灌装生产线头数The number of filling head	8头（待选4、6、8、10、1二个罐装头）8 head (optional 4𓂃, 6, 8, 𓆉10, 12 filling head)

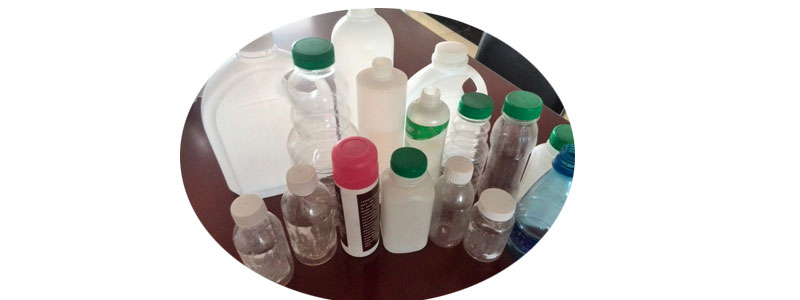

常用瓶径 Applicable bottles Drive	Ф33-Ф100 mm
计量校准计算精度measure precision	±1%
罐装储电量Canned capacity	150-1000ml
的生产能分析力Production Capacity	2400-4000瓶/半小时2400-4000   bottles per hour
气源压力bleed pressure	0.7-0.9mpa
电    源Power Supply	380 伏/50 HZ
总 功 率The total power	0.5 kw
外形尺寸 boundary dimension	6000×850×1800 mm
重    量Weight	500kg
