主要用途与简价/Brief introduction：

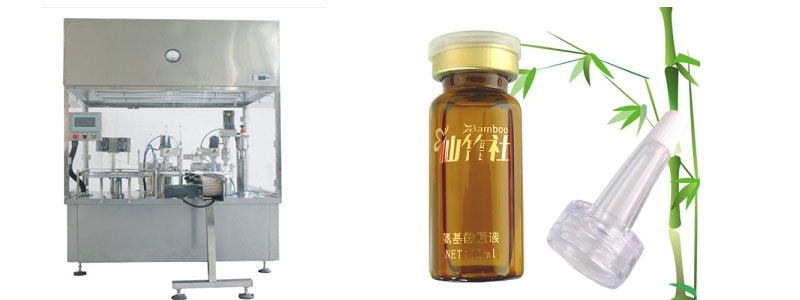

该机是在扶持和吸收的作用国内外高级技艺的基础理论上，我来单位综合性产品研发的三款专业技术针对于西林瓶的包装、上塞、旋（轧）盖机。该机主要采用泰国全进口货高导致高精准度封闭型式轴承测量范围流水线工器，导致高精准度提高，进行是真的吗，应用年限长。该测量范围器结构的方便，经常应用不要修理。这个机器最主要的应应采用繁多小药量液滴的灌装线、压塞及旋（轧）盖，如复方精油、打瘦脸针剂等。常见应采用美食、制作药品、化工制造行业制造行业及教学科研各个领域。这个机器既可单机手机游戏制作，又可与洗瓶机、粗糙机等机 构成的三级联动制作线。全部契合政府GMP要。这个机器行随着企业要强制升级电子商务设备。NFGX-5/50 Automatic Vial Filling&rotation (rolling) machine is built in the absorption of foreign advanced tecnology, based on independently developed by the company ,It is the domestic leading level.This machine is suitable for a variety of small doses of liquid filling&capping such as oil, injection . Widely used in food, pharmaceutical, chemical industries and scientific research.  Single machine can produce, but also with washing machine, dryer and other equipment linked production line. Full compliance with the GMP requirements. The machine according to customer requirements to upgrade the electrical configuration

结构特征/Characteristic:：

◆人机对战表面选用、基本操作抽象化以便于、PLC操控，装量*。Human-machine interface settings, an easy and intuitive, PLC control, the amount of precision equipment. ◆交流变频管控、制造流速多种设定、自主数值。Frequency control, the production rate be adjusted automatically count  ◆自己停用模块，无瓶不装灌。No bottle no filling.◆圆板精准定位式罐装，保持稳定准确。Disc positioning filling, stable and reliable.◆高gps精度气缸量程计管理，产品定位*。High-precision cam meter control, precise positioning.◆选择SUS304及316L不透钢研制，全部合适GMP标准。SUS304 and 316L stainless steel, full compliance with GMP requirements.

方法参数设置/ technical parameters：

装量区间Filling volume	5-50ml
装量误差度loading error	≤ ±1%
旋（轧）盖合适率 Rotation (rolling) Cover pass rate:	≥99%
生產力Production capacity	30-60瓶/分 钟 ♛; 高转速 70-100瓶/分&nb🎃sp;钟     高速公路 30-ဣ60 bottles / min  70-100 bottles / minute (high speed)
压塞率Tamponade rate	≥99%
交流电源 Power	380V/50Hz
工作功率Power	2.0 kw
器机净重量Net weight	600 kg
内部结构尺寸 Dimension	2000*1000*1500mm
