贷款用途与概况/Brief Introduction：

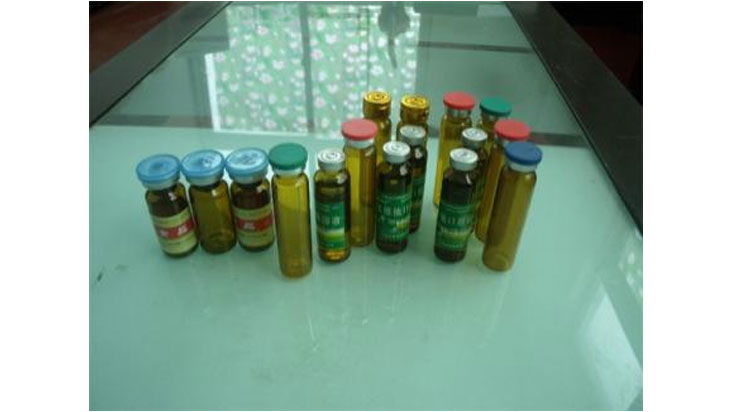

滤油机组为10-20ml内服方式方式液流体包装种植线中的最主要制造的设备。是由洗瓶、烤干集成机和包装封膜集成机所组成的，能自功成功完成内服方式方式液瓶的洗瓶、烤干、包装和封膜等运行，是内服方式方式液种植的设备厂家更不错的配套设施制造的设备，完完全全贴合GMP需要。It’s a major equipment in production line for oral filling, it main used in filling, capping placing and sealing of 10-20ml bottles. Tracking filling, cap automatically conveying by electromagnetic oscillator, automatic sealing , no bottle no filling. Filling and sealing integrated in one machine, advanced design, compact structure and completely comply with requirement of GMP

特殊性/Characteristic：

◆装量精准，禁止漏滴。灌装线精准较高。High filling accuracy.◆变频器无及调速器，产量快速可以调节，可选装择各个的产量快速。Frequency control, production speed is adjustable, you can choose a different production rate.◆整个电器电线电缆器件均采用了原产知时尚牌子牌牌子。All electrical components are imported famous brands.◆全自动表现记数性能。Automatically countting function.◆有效控制选择日三菱PLCPLC，抗干预，运转安稳。Controlled by Mitsubishi PLC◆固定性固定，服务器维护维护快捷。Stable performance, easy maintenance.◆裸机表皮用到了SUS304不锈304不锈钢圆管钢板网作、与货位接觸部门用到了316L304不锈钢圆管。裸机基本按GMP想要制定。Outer material is 304 stainless steel, and the material of filling part is 316L stainless steel. The machine is completely designed according to GMP requirements.

技术工艺规格/technical parameters：

应用样式/Bottle size	10-20ml
产量力/Capacity	60-90瓶/分种/60-90bottles/min
烘干功能高温/Dryer tempreture	100-300°
使用河水量/Water wastage	0.5m3/h
处理水耗量/Purifying water consumption	0.3m3/h
装量gps精度/Filling precision	≤1%
电源模块/Voltage	380V/50Hz
工作电压/Power	33KW
生产制造线总长/Dimension	3500×1500×1600mm
